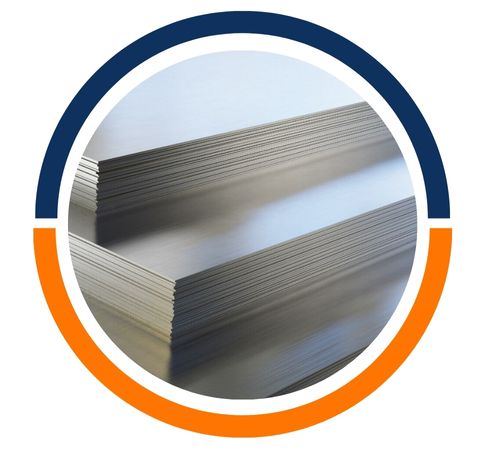

Amal Aluminium, based in Muscat, OMAN, is a trusted manufacturer and supplier of high-quality aluminium products, specializing in Aluminium 1050 sheets and plates. Known for their excellent corrosion resistance, high electrical and thermal conductivity, and outstanding formability, our Aluminium 1050 sheets and plates are ideal for industries such as electronics, packaging, and automotive. We provide customized solutions to meet specific requirements, ensuring durability and performance. With a commitment to quality, Amal Aluminium is your reliable partner for all aluminium 1050 sheet and plate needs.
Aluminium 1050 Sheets and Plates are primarily composed of 99.5% pure aluminium, offering excellent corrosion resistance and high thermal and electrical conductivity. It is a non-heat treatable alloy, which means its mechanical properties are enhanced through cold working. The material has a tensile strength of approximately 70-120 MPa and a yield strength of 25-45 MPa, with high elongation (around 30%). Aluminium 1050 is highly formable, making it ideal for applications requiring intricate shaping. Its low density and excellent workability make it suitable for industries like electrical, chemical, and food processing.
| Standards | ASTM B209 / ASME SB209 |
| Temper | O,H12,H14,H16,H18,H19,H22,H24 |
| Thickness | 0.2-50 |
| Width | 100-2600 |
| Length | 500-10000 |
| Surface | Bright, polished, hair line, brush, sand blast, embossed, etching, etc. |
| Finish | Mill, Customer specific finish |
| Aluminum Sheet/ Plate Coating | PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating |
| Type | Hot-Rolled (HR) / Cold-Rolled (CR) Sheet |
| Alloy (ISS) | Equivalent alloy (A.A) | Copper | Magnesium | Silicon | Iron | Managanese Others* (Total) | Remarks | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Old | New | U.S.A | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Max | Max. | Aluminum 99.0% Min. | ||
| 1 B | 19500 | 1050 | — | 0.05 | — | — | — | 0.30 | 0.4 | — | 0.05 | 0.1 | Aluminum 99.5% Min. | ||
| Alloy | Temper | UTS (Mpa) | Yield Strength (Mpa) | Elongation (%) | ||
|---|---|---|---|---|---|---|
| Minimum | Maximum | Minimum | Maximum | A 50mm (Minimum) | ||
| EN AW-1050 A | F | 60 | – | 20 | – | 23 |
| O | 60 | 95 | 20 | – | 23 | |
Amal Aluminium based in Muscat, OMAN is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
| European Standard | BS (OLD) | USA (AA) | GERMANY (DIN) | ISO | IS | Canadian |
|---|---|---|---|---|---|---|
| EN AW-1050 A | 1E | 1050 | Al99.5 | Al99.5 | 19500, 19501 | 1 S |
| Sizes (mm) | Theoretical Mass KG/Plate |
|---|---|
| 2000 X 1000 X 0.5 | 2500 X 1250 X 0.5 |
| 2000 X 1000 X 0.7 | 2500 X 1250 X 0.7 |
| 2000 X 1000 X 0.9 | 2500 X 1250 X 0.9 |
| 2000 X 1000 X 1.2 | 2500 X 1250 X 1.2 |
| 3000 X 1500 X 1.2 | 2000 X 1000 X 1.6 |
| 2500 X 1250 X 1.6 | 3000 X 1500 X 1.6 |
| 2000 X 1000 X 2.0 | 2500 X 1250 X 2.0 |
| 3000 X 1500 X 2.0 | 2500 X 1250 X 2.5 |
| 2.79 | 4.36 |
| 3.91 | 6.10 |
| 5.02 | 7.85 |
| 6.74 | 10.46 |
| 15.01 | 8.93 |
| 13.95 | 20.09 |
| 11.16 | 17.44 |
| 25.11 | 21.80 |
| Product | Thickness | Weight |
|---|---|---|
| 1050 Aluminium Plate | 0,30 mm | 0,810 Kg/m2 |
| 1050 Aluminium Plate | 0,40 mm | 1,080 Kg/m2 |
| 1050 Aluminium Plate | 0,50 mm | 1,350 Kg/m2 |
| 1050 Aluminium Plate | 0,60 mm | 1,620 Kg/m2 |
| 1050 Aluminium Plate | 0,70 mm | 1,890 Kg/m2 |
| 1050 Aluminium Plate | 0,80 mm | 2,160 Kg/m2 |
| 1050 Aluminium Plate | 0,90 mm | 2,430 Kg/m2 |
| 1050 Aluminium Plate | 1,00 mm | 2,700 Kg/m2 |
| 1050 Aluminium Plate | 1,20 mm | 3,240 Kg/m2 |
| 1050 Aluminium Plate | 1,40 mm | 3,780 Kg/m2 |
| 1050 Aluminium Plate | 1,50 mm | 4,050 Kg/m2 |
| 1050 Aluminium Plate | 1,60 mm | 4,320 Kg/m2 |
| 1050 Aluminium Plate | 1,80 mm | 4,860 Kg/m2 |
| 1050 Aluminium Plate | 2,00 mm | 5,400 Kg/m2 |
| 1050 Aluminium Plate | 2,20 mm | 5,940 Kg/m2 |
| 1050 Aluminium Plate | 2,50 mm | 6,750 Kg/m2 |
| 1050 Aluminium Plate | 3,00 mm | 8,100 Kg/m2 |
| 1050 Aluminium Plate | 4,00 mm | 10,800 Kg/m2 |
| 1050 Aluminium Plate | 5,00 mm | 13,500 Kg/m2 |
| 1050 Aluminium Plate | 6,00 mm | 16,200 Kg/m2 |
| 1050 Aluminium Plate | 10,00 mm | 27,000 Kg/m2 |
| 1050 Aluminium Plate | 12,00 mm | 32,400 Kg/m2 |
| 1050 Aluminium Plate | 15,00 mm | 40,500 Kg/m2 |
| 1050 Aluminium Plate | 20,00 mm | 54,000 Kg/m2 |
Yes, we offer custom sizes for Aluminium 1050 Sheets and Plates to meet specific project needs. Our team at Amal Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@amalaluminium.com
Aluminium 1050 sheets and plates are widely used in industries that require high conductivity and excellent corrosion resistance. Common applications include electrical conductors, heat exchangers, and radiators, due to their superior thermal and electrical conductivity. They are also used in the food and chemical industries for containers, packaging, and equipment, thanks to their resistance to corrosion. Additionally, Aluminium 1050 is ideal for manufacturing decorative products, as well as in the automotive and aerospace sectors for non-structural components that require light weight and ease of fabrication.
