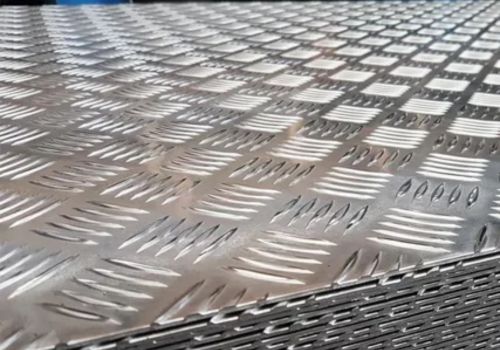

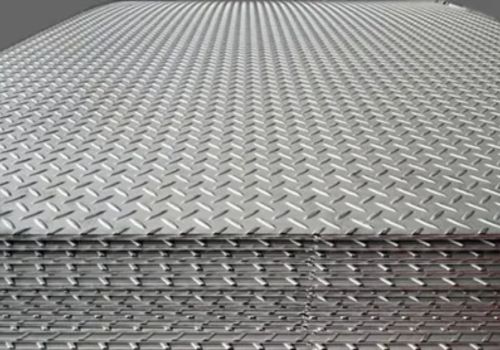

Amal Aluminium is a leading manufacturer and supplier of high-quality aluminium products in Muscat, OMAN. Specializing in a wide range of aluminium materials, the company offers top-grade Aluminium 2014 Chequered Plates, known for their durability, strength, and excellent resistance to corrosion. Ideal for various industrial applications, Amal Aluminium ensures precision and reliability in every product, providing customers with tailored solutions for their specific needs. With a commitment to quality, Amal Aluminium is the trusted name in the industry.
Aluminium 2014 Chequered Plates are made from an alloy primarily composed of 4.4-5.0% copper, with smaller amounts of manganese, silicon, and other elements. This composition provides excellent strength and wear resistance. The mechanical properties of Aluminium 2014 Chequered Plates include a tensile strength of 480-620 MPa, yield strength of 320 MPa, and elongation of 3-10%. Known for high strength-to-weight ratio, these plates are ideal for aerospace, automotive, and structural applications. They also exhibit good machinability and moderate corrosion resistance, making them suitable for demanding environments.
Standards : ASTM B209 / ASME SB209
Temper : O, T3, T4, T6, T651
Thickness : 0.2-250
Width : 100-2600
Length : 500-10000
Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.
Finish :Mill, Customer specific finish
Aluminum Chequered Plate Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating

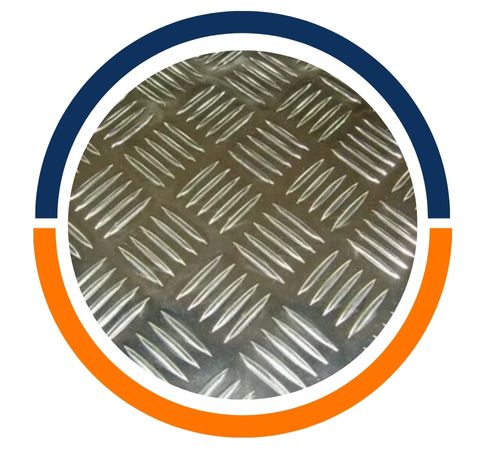

Type : Hot-Rolled (HR) / Cold-Rolled (CR) Chequered Plate
| European Standard | BS (OLD) | WNR | UNS | ISO | USA (AA) | GERMANY (DIN) | IS | Canadian |
|---|---|---|---|---|---|---|---|---|
| EN AW-2014 | HE15 | 3.1255 | A92014 | AlCu4SiMg | 2014 | AlCuSiMn | 24345 | B26S |
| Alloy | Si | Fe | Cu | Zn | Mn | Mg | Ti | Other | Cr | Ni | Others | Ti+Zr | Al |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2014 (min) (max) | 0.50 – 0.90 | 0.0 – 0.50 | 3.90 – 5.00 | 0.0 – 0.25 | 0.40 – 1.20 | 0.20 – 0.80 | 0.0 – 0.15 | 0.0 – 0.15 | 0.0 – 0.10 | 0.0 – 0.10 | 0.0 – 0.05 | 0.0 – 0.20 | Balance |
| Alloy | Temper | UTS (Mpa) | Yield Strength (Mpa) | Elongation (%) | ||
|---|---|---|---|---|---|---|
| – | – | Minimum | Maximum | Minimum | Maximum | A 50mm (Minimum) |
| EN AW-2014 | O | – | 250 | – | 135 | 10 |
| T4 | 370 | – | 230 | – | 11 | |
Amal Aluminium based in Muscat, OMAN is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminium 2014 Chequered Plates to meet specific project needs. Our team at Amal Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@amalaluminium.com
Aluminium 2014 Chequered Plates are widely used in industries requiring high strength and durability. Common applications include aerospace, automotive, and defense sectors, where they are utilized in aircraft structures, body panels, and flooring. Their chequered pattern provides enhanced slip resistance, making them ideal for use in walkways, ramps, and flooring in industrial environments. Additionally, these plates are used in marine, rail, and construction industries for structural components, platforms, and protective panels. Their excellent strength-to-weight ratio and moderate corrosion resistance make them versatile for demanding applications.
