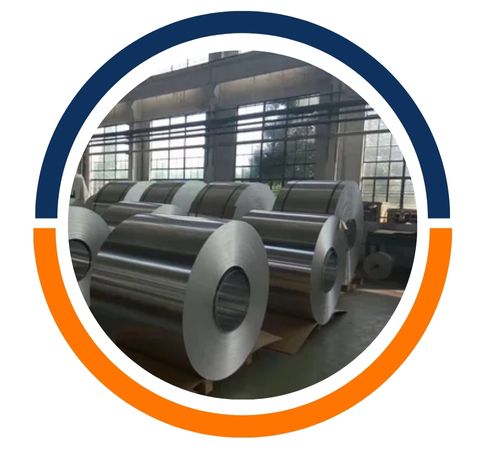

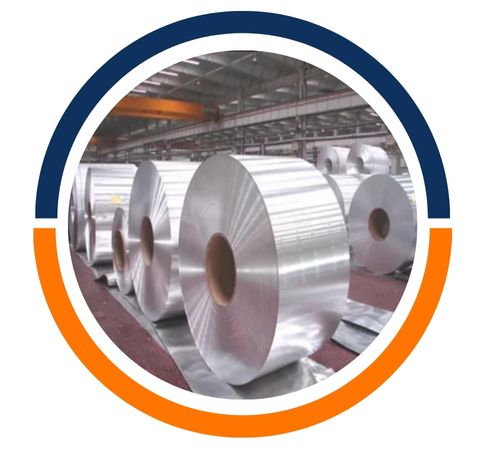

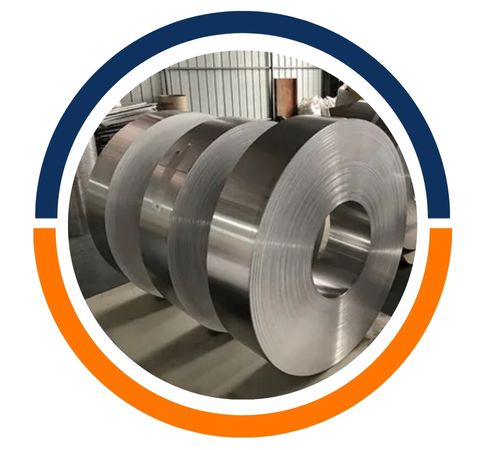

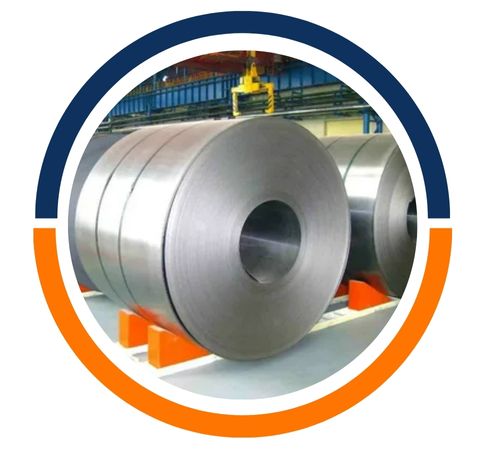

Amal Aluminium is a trusted manufacturer and supplier of high-quality aluminium products based in Muscat, OMAN. Renowned for excellence, the company specializes in providing durable and versatile aluminium solutions to meet diverse industrial and commercial needs. Among their premium offerings are Aluminium 5005 Coils, known for their exceptional corrosion resistance, lightweight properties, and superior machinability. These coils are ideal for architectural cladding, signage, and decorative applications, making Amal Aluminium a preferred choice for reliable and cost-effective aluminium supplies.
Aluminium 5005 Coils are composed primarily of aluminium (95.8–98.8%), with magnesium (0.5–1.1%) as the main alloying element, along with traces of manganese (≤0.20%), iron (≤0.7%), silicon (≤0.30%), copper (≤0.20%), zinc (≤0.25%), and chromium (≤0.10%). This composition enhances its strength and corrosion resistance. Aluminium 5005 has a tensile strength of 110–145 MPa and yield strength of 90 MPa in the annealed state (O temper), with good elongation (min. 15–20%). It offers excellent weldability, moderate strength, and high resistance to atmospheric and marine corrosion.
Standards : ASTM B209 / ASME SB209
Temper : O,H14,H16,H18,H19,H22,H24
Thickness : 0.1-4
Width : coil
Length : 100-1600
Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.
Finish :Mill, Customer specific finish
Aluminum Coil Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating

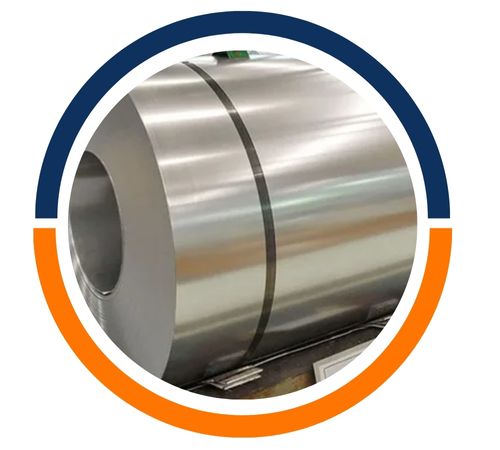

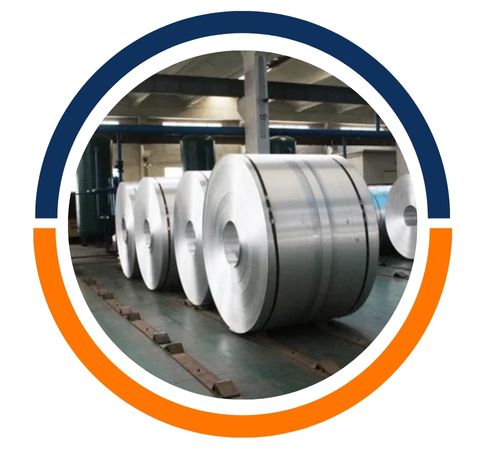

Type : Hot-Rolled (HR) / Cold-Rolled (CR) Coil
| European Standard | GERMANY | UNS | DIN,WNr |
| B57S | AI-Mg-1 | A95005 | – |
| Weight% | Al | Si | Fe | Cu | Mn | Cr | Mg | Zn | Others Each | Others Total |
| 5005 | Bal | 0.30 max | 0.70 max | 0.20 max | 0.20 max | 0.10 max | 0.50 / 1.10 | 0.25 max | 0.05 max | 0.15 max |
| Material | Temper | Tensile Strength (N/mm²) | Yield Strength (N/mm²) | Elongation on 50mm (%) | |||
| 0.5 mm | 0.8 mm | 1.3 mm | 2.6mm | ||||
| 5005 | 0 | 95-145 | – | 18 | 20 | 21 | 22 |
| 5005 | H12 | 125-170 | 80 | 4 | 5 | 6 | 8 |
| 5005 | H14 | 145-185 | 100 | 3 | 3 | 5 | 6 |
| 5005 | H18 | 185 min | 165 | 1 | 2 | 3 | 3 |
Amal Aluminium based in Muscat, OMAN is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminium 5005 Coils to meet specific project needs. Our team at Amal Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@amalaluminium.com
Aluminium 5005 Coils are widely used across various industries due to their excellent corrosion resistance, lightweight nature, and aesthetic appeal. In architecture, they are ideal for curtain walls, roofing, and cladding, offering durability and weather resistance. These coils are also popular in signage, anodized decorative finishes, and kitchen appliances for their smooth surface and adaptability to anodizing. Additionally, they are used in marine applications, automotive trims, and storage tanks, providing reliable performance in environments where strength and corrosion resistance are critical.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
